Product Details:
Payment & Shipping Terms:
|
| Leg: | Single | Legs: | Four |
|---|---|---|---|
| Wire Rope Dia.: | 6mm - 60mm | Link Parameter (mm): | 65*130*16 - 180*330*52 |
| WLL: | 0.75t - 30t | MOQ: | 500 Meters |
| High Light: | horizontal lifting clamp,steel lifting clamps |
||
1. Product Profile:
Wire Rope Sling with Single, Double or Four Legs
2. Features and Advantages:
2.1. Rated load has two kinds of state.
2.2. Usually is 0° - 45° priority load if no special requirement.
2.3. Different rated load on different wire rope specification.
2.4. Customization on steel wire rope structure to calculate the rated load is acceptable.
3. Parameter:

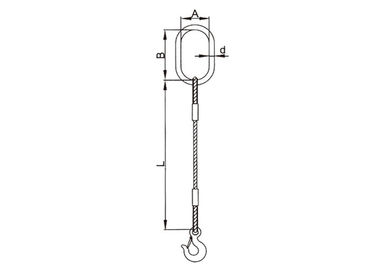

| Model | Wire Rope Dia.(mm) | WLL (kn) | Link Parameter(A*B*d)(mm) | Lifting Hook | |
| Item | WLL(t) | ||||
| SY-WCSH-6 | 6 | 2.7 | 65*130*16 | U.S. 320A | 0.75 |
| SY-WCSH-7 | 7 | 3.6 | 65*130*16 | U.S. 320A | 0.75 |
| SY-WCSH-8 | 8 | 4.7 | 65*130*16 | U.S. 320A | 0.75 |
| SY-WCSH-9 | 9 | 6 | 65*130*16 | U.S. 320A | 0.75 |
| SY-WCSH-10 | 10 | 7.4 | 65*130*16 | U.S. 320A | 0.75 |
| SY-WCSH-11 | 11 | 8.9 | 65*130*16 | U.S. 320A | 1 |
| SY-WCSH-12 | 12 | 11 | 65*130*16 | U.S. 320A | 1.5 |
| SY-WCSH-13 | 13 | 12 | 65*130*16 | U.S. 320A | 1.5 |
| SY-WCSH-14 | 14 | 14 | 65*130*16 | U.S. 320A | 1.5 |
| SY-WCSH-16 | 16 | 19 | 65*130*16 | U.S. 320A | 2 |
| SY-WCSH-18 | 18 | 24 | 80*150*20 | U.S. 320A | 3 |
| SY-WCSH-20 | 20 | 30 | 80*150*20 | U.S. 320A | 3 |
| SY-WCSH-22 | 22 | 36 | 90*160*24 | U.S. 320A | / |
| SY-WCSH-24 | 24 | 42 | 90*160*24 | U.S. 320A | / |
| SY-WCSH-26 | 26 | 50 | 90*160*24 | U.S. 320A | / |
| SY-WCSH-28 | 28 | 58 | 100*190*28 | U.S. 320A | 7 |
| SY-WCSH-30 | 30 | 66 | 100*190*28 | U.S. 320A | 7 |
| SY-WCSH-32 | 32 | 76 | 100*190*28 | U.S. 320A | 11 |
| SY-WCSH-34 | 34 | 85 | 110*200*32 | U.S. 320A | 11 |
| SY-WCSH-36 | 36 | 96 | 110*200*32 | U.S. 320A | 11 |
| SY-WCSH-38 | 38 | 106 | 120*230*34 | U.S. 320A | 11 |
| SY-WCSH-40 | 40 | 118 | 120*230*34 | U.S. 320A | 15 |
| SY-WCSH-42 | 42 | 130 | 135*250*38 | U.S. 320A | 15 |
| SY-WCSH-44 | 44 | 143 | 135*250*38 | U.S. 320A | 15 |
| SY-WCSH-46 | 46 | 156 | 140*270*42 | U.S. 320A | 22 |
| SY-WCSH-48 | 48 | 170 | 140*270*42 | U.S. 320A | 22 |
| SY-WCSH-50 | 50 | 185 | 140*270*42 | U.S. 320A | 22 |
| SY-WCSH-52 | 52 | 200 | 140*270*42 | U.S. 320A | 30 |
| SY-WCSH-54 | 54 | 215 | 140*270*42 | U.S. 320A | 30 |
| SY-WCSH-56 | 56 | 231 | 160*310*46 | U.S. 320A | 30 |
| SY-WCSH-58 | 58 | 248 | 460*310*46 | U.S. 320A | 30 |
| SY-WCSH-60 | 60 | 266 | 180*330*52 | U.S. 320A | 30 |
4. Company Message:
OEM & ODM orders are both ok. Welcomes sample order to test our quality and service.
5. Photo for Reference:
