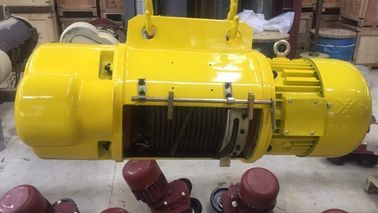

Heavy Duty 2 ton Electric Wire Rope Hoist For Storage / Warehouse / Workshop

Heavy Duty 2 ton Electric Wire Rope Hoist For Storage / Warehouse / Workshop
Heavy Duty 2 ton Electric Wire Rope Hoist For Storage / Warehouse / Workshop

Large Image :  Heavy Duty 2 ton Electric Wire Rope Hoist For Storage / Warehouse / Workshop

Product Details:
Place of Origin: China
Brand Name: JCYC
Certification: CE&ISO
Model Number: CD.MD
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD negotiate per unit
Packaging Details: Plywood case
Delivery Time: 10 -15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 pcs per month
Detailed Product Description
Color: Yellow&red Capacity: 0.25Ton - 20 Ton
Lifting Height: 3m-30m Power Supply: 220 - 600V, 50 - 60Hz
Duty Group: ISO M3 - ISO M5 Type: Wire Rope
High Light:

electric lifting hoist

,

stainless steel wire rope hoist

CD1 MD1 Heavy Duty Electric Wire Rope Hoist For Storage / Warehouse / Workshop

CD1 MD1 Model, Electric Wire Rope Hoist with Trolley or Fixed Type

Electric Wire Rope Hoist with yellow color by double speed used in high temperature area

Small-sized lifting equipment which can be mounted on single beam, bridge, gantry and arm cranes.

Widely used in factories, mines, harbors, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.



Product Details:

CD1 MD1 Electric Wire Rope Hoist



Features and advantages:

1. CD1/MD1 model can be used as a winch after slight modification.

2. Choose single or double lifting speed, even multi-speed with frequency inverters.

3. The suitable rail for low-headroom hoist is H-type rail, and I-type also is available.

4. The recommended rope reeving of the kind of hoist is 2/1, 4/2 or 4/1.

5. The normal traveling speed is 20m/min, or 12.5m/min, 16m/min, 25m/min, 32m/min by request.

6. The normal rail gauge of the double-girder hoist is 1200mm, 1500mm, 1800mm, 2100mm and 2300mm.

7. The normal traveling speed is 20m/min, or 30m/min, 45m/min by request.

8. CD1 has only a normal speed which can satisfy Normal application.

9. MD1 provides two speeds: Normal speed and Low speed. It can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc at a low speed.



Model Lifting Capacity(t) Lifting Height(m) Lifting Speed(m/min) Running Speed(m/min) Wire Rope Type Dia. Of Wire Rope(mm) I Beam Track Type Working Duty (H)Lifting Height Running Motor
Power(kw) R.P.M(r/min) Power Supply Power(kw) R.P.M(r/min) Power Supply
CD1-0.25 0.25 3-9 8 20 6*19 3.6 16-22b M3 0.4 1380 220-440V 50/60HZ 3 Phase 0.06 1400 220-440V 50/60HZ 3 Phase
CD1-0.5 0.5 6-12 8 20 6*37+1 4.8 16-28b M3 0.8 1380 0.2 1380
CD1-1 1 6-30 8 20 6*37+1 7.4 16-28b M3 1.5 1380 0.2 1380
CD1-2 2 6-30 8 20 6*37+1 11 20a-32c M3 3 1380 0.4 1380
CD1-3 3 6-30 8 20 6*37+1 13 20a-32c M3 4.5 1380 0.4 1380
CD1-5 5 6-30 8 20 6*37+1 15 25a-63c M3 7.5 1380 0.8 1380
CD1-10 10 6-30 7 20 6*37+1 15 25a-63c M3 13 1380 0.8*2 1380
CD1-16 16 6-30 3.5 20 6*37+1 15 45a-63c M3 13 1380 0.8*2 1380
CD1-20 20 6-30 3.5 20 6*37+1 20 50a-63c M3 13 1380 0.8*2 1380

Model Lifting Capacity(t) Lifting Height(m) Lifting Speed(m/min) Running Speed(m/min) Wire Rope Type Dia. Of Wire Rope(mm) I Beam Track Type Working Duty (H)Lifting Height Running Motor
Power(kw) R.P.M(r/min) Power Supply Power(kw) R.P.M(r/min) Power Supply
MD1-0.25 0.25 3-9 8/0.8 20 6*19 3.6 16-22b M3 0.4 1380 220-440V 50/60HZ 3 Phase 0.06 1400 220-440V 50/60HZ 3 Phase
MD1-0.5 0.5 6-12 8/0.8 20 6*37+1 4.8 16-28b M3 0.2/0.8 1380 0.2 1380
MD1-1 1 6-30 8/0.8 20 6*37+1 7.4 16-28b M3 0.2/1.5 1380 0.2 1380
MD1-2 2 6-30 8/0.8 20 6*37+1 11 20a-32c M3 0.4/3 1380 0.4 1380
MD1-3 3 6-30 8/0.8 20 6*37+1 13 20a-32c M3 0.4/4.5 1380 0.4 1380
MD1-5 5 6-30 8/0.8 20 6*37+1 15 25a-63c M3 0.8/7.5 1380 0.8 1380
MD1-10 10 6-30 7/0.7 20 6*37+1 15 25a-63c M3 1.5/13 1380 0.8*2 1380
MD1-16 16 6-30 3.5/0.35 20 6*37+1 15 45a-63c M3 1.5/13 1380 0.8*2 1380
MD1-20 20 6-30 3.5/0.35 20 6*37+1 20 50a-63c M3 1.5/13 1380 0.8*2 1380
