0.5 tons to 10 tons Single Girder Suspended Travelling Crane / Flexible Hoisted Crane

0.5 tons to 10 tons Single Girder Suspended Travelling Crane / Flexible Hoisted Crane
0.5 tons to 10 tons Single Girder Suspended Travelling Crane / Flexible Hoisted Crane

Large Image :  0.5 tons to 10 tons Single Girder Suspended Travelling Crane / Flexible Hoisted Crane

Product Details:
Place of Origin: China
Brand Name: JCYC / OEM
Certification: CE
Model Number: Single Girder Hanging Bridge Crane
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Standart export plywood package
Delivery Time: 18 -22 workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 700 sets per month
Detailed Product Description
Product Name: 0.5 Tons To 10 Tons Single Girder Suspended Travelling Crane / Flexible Hoisted Crane Material: Flexible Steel
Parts: KBK Beam: Crossbeam
Track: Walking Track ( I-steel) Type: Light And Small Lifting Equipment
High Light:

industrial overhead crane

,

overhead beam crane

0.5 tons to 10 tons Single Girder Suspended Travelling Crane / Flexible Hoisted Crane





Product Name:



SINGLE GIRDER / BEAM HANGING / OVERHEAD CRANE

Single beam / girder hanging crane (single-beam / girder hoisted crane)



Product Details:



A single beam hanging crane (single-beam hoisted crane) is a crane that hangs a crossbeam on the walking track (I-steel) of a building. It is also a crane that can operate freely under a single beam. Its setting and span of walking track can be set freely, mostly suitable for the production line and so on.



A flexible light weight composite beam suspension crane is a perfect choice in order to not affect operation when the working area is not allowed to have any supporting structure. The crane system needs a roof structure which can withstands load of enough strength and safety to support the crane. Users can install a number of main beams on one set of fixed rail, this greatly improves production efficiency. It is a steel structure with 75-2,000kg lifting capacity and its total length of main beam can reach 10 meters. The transport force of closed rail design is one one-third compare with traditional beam type crane. The truss type rail design made span greater and installation layout more flexible.



Features:



1. Various track models and spans, lifting weight can be upto 2000kg.

2. Modular design of prefabricated standards makes it easier to expand, install and remove.

3. Can be installed on any normal reinforced concrete ground with 15 cm thickness.

4. Closed rail design reduces contamination of dirt and dust.

5. Steel fixed rail is more beneficial to the load location.

6. High strength one time cold rolling steel rail has high self-weight and precision. The smooth rolling surface reduces resistance of roller wheel.

7. Wide application, applied to a lot of material handing environment.

8. Very economical to single work unit.

9. Light installation reduces time and cost.

10. Increases operators’ satisfaction.

11. Realizes safe operating environment.

12. Rapid investment return can be achieved by improving production efficiency.



Product Photo:

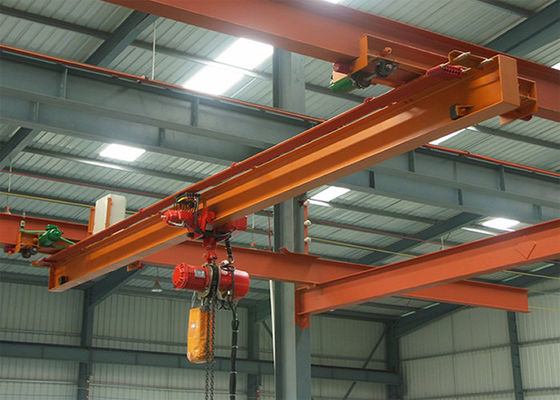

0.5 tons to 10 tons Single Girder Suspended Travelling Crane / Flexible Hoisted Crane 0

Product application:



It is designed to use for lighter loads ( not more than 2000kg) relatively, such as parts assembly, manufacturing processing industry, cargo plate loading, injection molding, storage and unloading, equipment maintenance, etc.



Advantages:

1. Single girder suspension crane uses standard track and other auxiliary standard combination.

2. Flexible driving, extensive adaption, low maintenance and easy replacement.

3. Special flexibility and freedom than other cranes, easy intall and freely combine.

4. High strength, good rigidity, light weight and excellent material ensure stability and convenient operation.

5. All parts are highly cost effective and standardized, with high accuracy, reliable quality and stable performance.



Paramter:



Loading Weight

(t)

0.5 1 2 3.2 5 6.3 8 10

Span

(m)

5.5-22.5
Operation Mechanism

Running Speed

(m/min)

20 20 20
Power 0.37KW*2 0.75KW*2 0.75KW*2
Wire Rope Electric Hoist Model 500kg-10000kg

Lifting Speed

(m/min)

0.8/5 1.3/8 1.3/8 0.66/4

Lifting Height

(m)

6/9/12/18

Travelling Speed

(m/min)

5-20
Whole Machine Working Grade A5







Company Message:

OEM, ODM, sample order are all okey. 1 year warranty.
