Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Color: | Customised |
|---|---|---|---|
| Material: | Steel | Warranty: | 1 Year |
| Rated Loading Capacity: | 1.6t To 32t | Feature: | Crane Beam |
| High Light: | crane carriage,end carriage of crane |
||

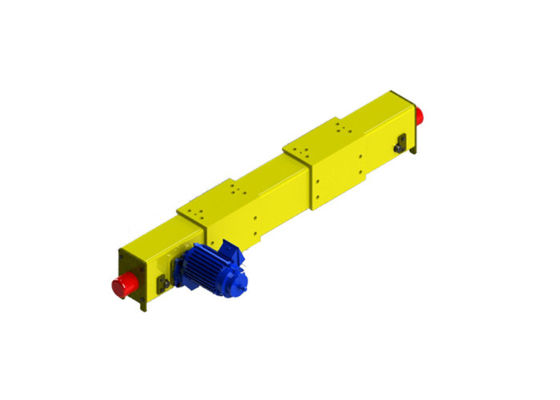

Customised European Style Double Girder Top Running End Carriage For Overhead Crane
MAIN FEATURES:
Double beam crane end beam applys rectangular tube moduler manufacturing, buffer motor drive, with forged wheels, using CNC boring and milling of various customized machine. It completes the trepanning, hole boring, milling and drilling all at once. You only need to correct welding crane girder and the end beam. Ultra high cost performance make it very easy for your crane manufacturing, installation and maintanence.
SPECIFICATION:
| Model | Crane | Rectangular Steel tube |
Wheel size | Motor power (20m/min) |
Motor power (30m/min) |
S1 (mm) |
S2 (mm) |
S3 (mm) |
W1 (mm) |
W2 (mm) |
| EUD90-20 | 1.6t-11.5m | 150*150*6 | U90*60 | FA27-0.25KW | FA27-0.37KW | 2000 | 1800 | 1000-1200 | 400 | 550 |
| EUD90-25 | 1.6t-16.5m | 2500 | 2300 | 1000-1200 | 400 | 550 | ||||
| EUD125-25 | 3.2t-11.5m | 150*200*8 | U125*60 | FA37-0.55KW | FA37-0.75KW | 2500 | 2300 | 1200-1400 | 400 | 550 |
| EUD125-30 | 3.2t-16.5m | 3000 | 2800 | 1200-1400 | 400 | 550 | ||||
| EUD125-35 | 3.2t-22.5m | 3500 | 3300 | 1200-1400 | 500 | 650 | ||||
| EUD125-40 | 3.2t-28.5m | 4000 | 3800 | 1200-1400 | 500 | 650 | ||||
| EUD160-25 | 6.3t-11.5m | 150*250*8 | U160*70 | FA47-0.75KW | FA47-1.1KW | 2500 | 2200 | 1200-1400 | 400 | 550 |
| EUD160-30 | 6.3t-16.5m | 3000 | 2700 | 1200-1400 | 400 | 550 | ||||
| EUD160-35 | 6.3t-22.5m | 3500 | 3200 | 1200-1400 | 500 | 650 | ||||
| EUD160-40 | 6.3t-28.5m | 4000 | 3700 | 1200-1400 | 600 | 750 | ||||
| EUD200-25 | 12.5t-11.5m | 200*250*8 | U200*70 | FA57-1.1KW | FA57-1.5KW | 2500 | 2200 | 1400-1600 | 500 | 650 |
| EUD200-30 | 12.5t-16.5m | 3000 | 2700 | 1400-1600 | 500 | 650 | ||||
| EUD200-35 | 12.5t-22.5m | 3500 | 3200 | 1400-1600 | 600 | 750 | ||||
| EUD200-40 | 12.5t-28.5m | 4000 | 3700 | 1400-1600 | 600 | 750 | ||||
| EUD250-35A | 16t-16.5m | 200*300*8 | U250*80 | FA67-1.5KW | FA67-2.2KW | 3500 | 3100 | 1600-1800 | 500 | 650 |
| EUD250-40A | 16t-22.5m | 4000 | 3600 | 1600-1800 | 600 | 750 | ||||
| EUD250-45A | 16t-28.5m | 4500 | 4100 | 1600-1800 | 700 | 850 | ||||
| EUD250-35B | 20t-16.5m | 200*400*8 | U250*80 | FA77-2.2KW | FA77-3KW | 3500 | 3100 | 1800-2000 | 600 | 750 |
| EUD250-40B | 20t-22.5m | 4000 | 3600 | 1800-2000 | 600 | 750 | ||||
| EUD250-45B | 20t-28.5m | 4500 | 4100 | 1800-2000 | 700 | 850 | ||||
| EUD315-35 | 32t-16.5m | 200*400*10 | U315*90 | FA87-4KW | FA87-5.5KW | 3500 | 3000 | 1800-2000 | 700 | 850 |
| EUD315-40 | 32t-22.5m | 4000 | 3500 | 1800-2000 | 700 | 850 | ||||
| EUD315-45 | 32t-28.5m | 4500 | 4000 | 1800-2000 | 700 | 850 |
Application:
JCYC-EUD European Style Double Girder Top Running End Carriage
Widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.
FACTORY SHOW:
