Low Headroom Electric Wire Rope Hoist Leading Crane For Coal Mining Industry

China Low Headroom Electric Wire Rope Hoist Leading Crane For Coal Mining Industry supplier

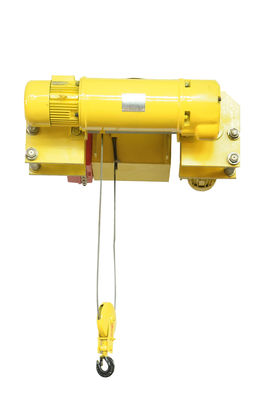

Large Image :  Low Headroom Electric Wire Rope Hoist Leading Crane For Coal Mining Industry

Product Details:

Place of Origin: China
Brand Name: JCYC
Certification: CE&ISO
Model Number: CDL & MDL

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: USD $599-$4999 per unit
Packaging Details: Plywood case
Delivery Time: 10 -15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Capcity: 0.5t-20t Lifting Height: 6m-30m
Voltage: 220v-440v,50HZ/60HZ Color: Customized
Usage: Lifting Goods Material: Steel





CDL MDL LOW HEADROOM ELECTRIC WIRE ROPE HOIST

CDL MDL Model Low Headroom Electric Wire Rope Hoist

It is a lifting equipment which designed on the basis of CD1/MD1.

Widely used in factories, mines, harbors, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.



Product Details:

CDL MDL Low Headroom Electric Wire Rope Hoist



Features and advantages:

1. Choose single or double lifting speed, even multi-speed with frequency inverters.

2. The suitable rail for low-headroom hoist is H-type rail, and I-type also is available.

3. CDL has only a normal speed which can satisfy Normal application.

3. MDL provides two speeds: Normal speed and Low speed. It can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc at a low speed.

4. High quality and wide adaptation.

5. Excellent performance and 1 year warranty.

6. Sample order, OEM and ODM orders are all welcomed.

Model Lifting Height(m) Travelling Speed(m/min) Wire Rope(Spec.) Dia. Of Wire Rope(mm) Lifting Motor Power Supply
Type Power(kw) R.P.M(r/min) Current(A)
0.5 8(0.8/8) 20/30 6*37+FC 4.8 ZD121-4 0.8(0.2/0.8) 1380 2.2(0.72/2.4) AC380V 50HZ,3P
ZDS10.2/0.8
1 8(0.8/8) 20/30 6*37+FC 7.4 ZD122-4 1.5(0.2/1.5) 1380 4.3(0.72/4.3)
ZDS10.2/1.5
2 8(0.8/8) 20/30 6*37+FC 11 ZD131-4 3(0.4/3) 1380 7.6(1.25/7.6)
ZDS10.4/3
3 8(0.8/8) 20/30 6*37+FC 13 ZD132-4 4.5(0.4/4.5) 1380 11(2.4/11)
ZDS10.4/4.5
5 8(0.8/8) 20/30 6*37+FC 15 ZD141-4 7.5(0.8/7.5) 1400 18(2.4/18)
ZDS10.8/7.5
10 7(0.7/7) 20/30 6*37+FC 15 ZD151-4 13(1.5/13) 1400 30(5.2/30)
ZDS11.5/13
16 3.5(0.35/3.5) 18 6*37+FC 17.5 ZD151-4 13(1.5/13) 1400 30(5.2/30)
ZDS11.5/13
