PA1000 1000KG 1T Fixed Type Mini Electric Wire Rope Hoist

Large Image : PA1000 1000KG 1T Fixed Type Mini Electric Wire Rope Hoist

Product Details:

Place of Origin:	China
Brand Name:	OEM
Certification:	CE & ISO
Model Number:	PA

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$50-$200
Packaging Details:	Standard export cases
Delivery Time:	15 to 20 working days
Payment Terms:	L/C,T/T,Western Union,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	500 sets per month

Contact Now

Detailed Product Description

Product Name:	PA Mini Electric Wire Rope Hoist	Lifting Capacity:	100kg To 1200kg
Lifting Height:	12m Standard	Voltage:	110/220v 230v 240v 1phase 50/60Hz
Color:	As Per Request	Application:	Construction
Highlight:	1 ton electric wire rope hoist , fixed type mini hoist , PA1000 wire rope hoist

PA1000 1000KG 1T Fixed Type Mini Electric Wire Rope Hoist

Product Details

Mini hoist capacity is from 100kg to 1200kg. Single hook and double hook lifting available.
Mini hoist has a large range of application areas. Because it is portable and convenient, porpular be used in areas like home, factory, warehouse, workshop, harbors, airport etc. for lifting and construction.
PA mini hoist with 100% pure copper motor, good cooling durable and energy efficient.
Mini electric wire rope hoist handle with emergency button.
Mini hoist with down and upper limiter.
The wire rope of mini electric hoist is anti-rotary wire rope with high strength.
Mini electric hoist with longer stator and rotor.
Thicken A4 shell to protect the mini electric hoist.
CE certificate available for mini electric hoist.

Product parameters

Model	Method of Use	Rated Volt (v)	Input Power (w)	Rated Capacity (kg)	Lifting Speed (m/min)	Lifting Height (m)	Qty/CTN PCS	Packing Size (cm)	G.W/N.W (kg)
PA200A	Single-Hook	AC 220/230V 50/60Hz	480	100	10	12	2	38×32×25	22.5/22
PA200A	Double-Hook		480	200	5	6			22.5/22
PA250A	Single-Hook		510	125	10	12			23/22
PA250A	Double-Hook		510	250	5	6			23/22
PA300A	Single-Hook		600	150	10	12			23.5/23
PA300A	Double-Hook		600	300	5	6			23.5/23
PA400A	Single-Hook		950	200	10	12		45×34×27	33/32
PA400A	Double-Hook		950	400	5	6			33/32
PA500A	Single-Hook		1020	250	10	12			33.5/32.5
PA500A	Double-Hook		1020	500	5	6			33.5/32.5
PA600A	Single-Hook		1200	300	10	12			35/34
PA600A	Double-Hook		1200	600	5	6			35/34
PA800A	Single-Hook		1300	400	8	12			38/37
PA800A	Double-Hook		1300	800	4	6			38/37
PA1000A	Single-Hook		1600	500	8	12	1	54×25×32	32/31
PA1000A	Double-Hook		1600	1000	4	6	1	54×25×32	32/31

Advantages

high-quality heat-aluminum shell , junction box,220V, household electrical plug
Thicken fan design,more signifcant thermal dissipation, estend usage time.
Limit switch when the bound board hits the limiting stopper, the elevator will automatically stop the jop and improve greatly work safety
gear and gear shaft are used by 40Cr or Cr MnTi steel ,forging processing with heat treatment.
comfortabel standard handle ,simple button, easy operation.
Copper wire can be limited to reduce the accident rate caused by bad weather or overload use with good anti-oxidation, corrosion-resistant and stable performance.

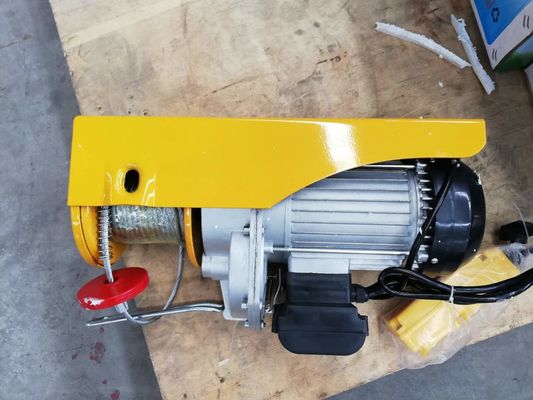

Product Photos Show

PA1000 1000KG 1T Fixed Type Mini Electric Wire Rope Hoist 0
